Hệ thống âm thanh tòa nhà, siêu thị, spa, cafe - shop

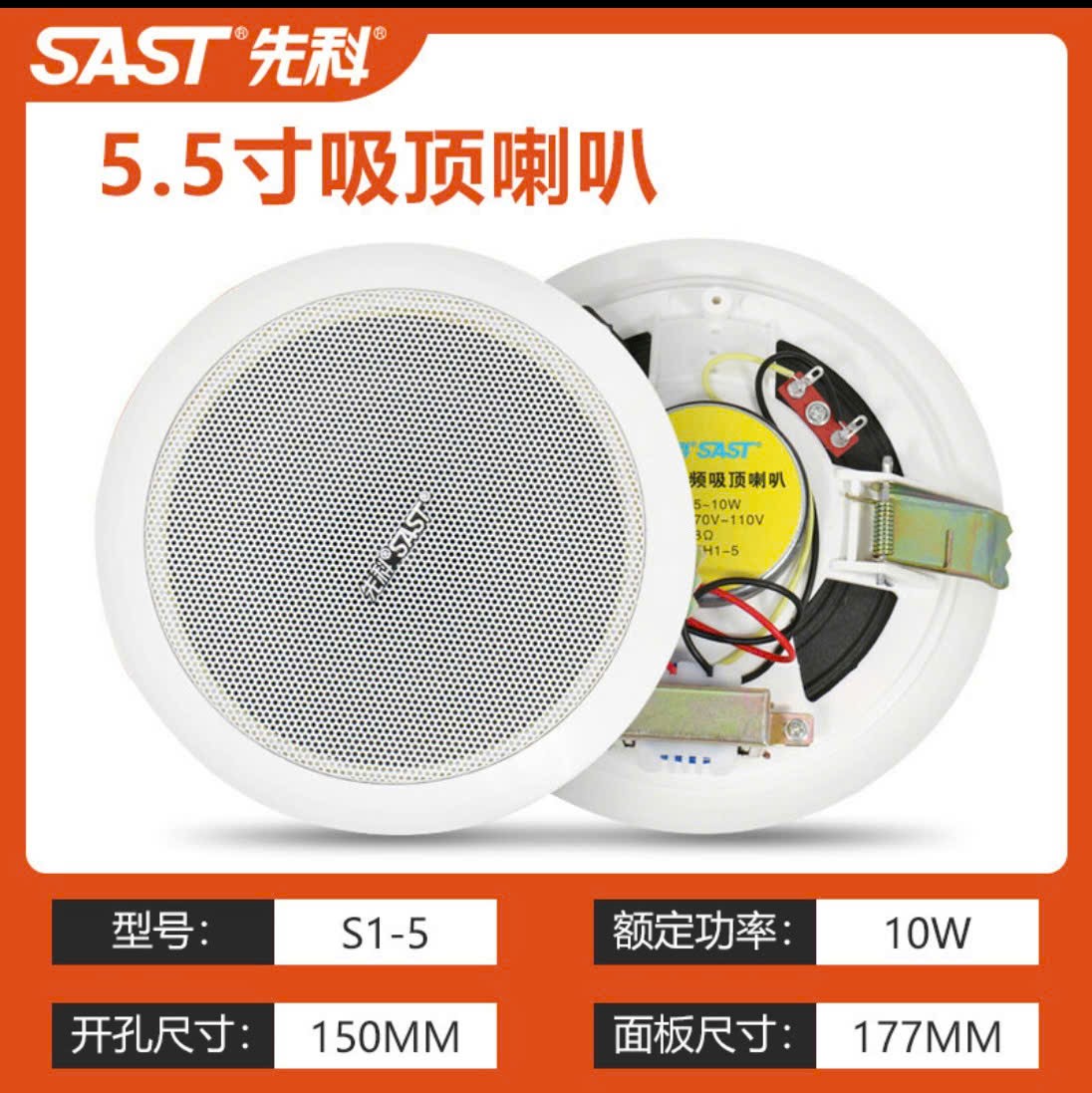

 Model:  5.5

ELECTRICAL

• Rated power, Watts: 10
• Tappings 100 volt line
• Transformer Impedance, Ohms, 100V: 1.67k/3.33k/6.66k/13.3k/39.9k
• Tappings 70.7 volt line, Watts: 6W
• Driver impedance, Ohms: 8
• Effective frequency range, Hz (BSEN60268-5): 85-18.5K
• S.P.L. @ 1m, 1 watt, dB, Test Signal Bandwidth 100 Hz-10 kHz: 92
• S.P.L. @ Full power Octave Bandwidth, dB: 90
• Dispersion at 1kHz/2kHz, Degrees: 180/120
• Directivity Axial Q factor, 1kHz/2kHz: 2.1/4.9

ENVIRONMENTAL

• IP-Rating: 21
• Max/Min Amb Temp: 55°/-10°C
• Relative Humidity: ≤95%

MECHANICAL

• Dimensions, mm: Height 80, Ø234
• Net Weight, Kgs: 0.9
• Colour (Unless Specified): RAL9016
• Material: Plastic Baffle ABS with UV inhibitors,
• Metal driver chassis & grille
• Mounting: Rotary compression clamps
• Cut-out, mm: Ø194
