Uhf Wireless System

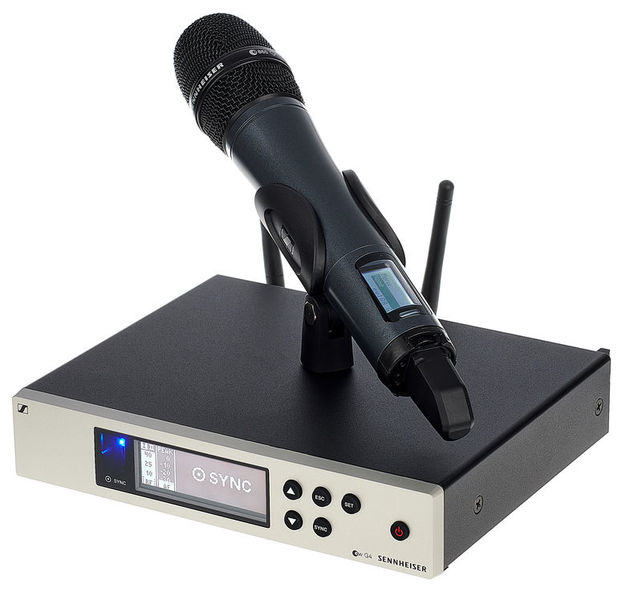

- SKM 100 G4-S handheld transmitter with mute switch and E845 replaceable capsule
- Frequency range: A-band (516 - 558 MHz)
- Includes GA 3 rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries
Features of E845 replaceable capsule:
- Dynamic
- Polar pattern: Super-cardioid
Features of EM 100 G4 9.5" receiver:
- 42 MHz bandwidth
- 20 Frequency banks with up to 12 presets for each
- Up to 20 compatible channels
- Fast frequency allocation for up to 12 recipients via link function with RJ10 connection
- Frequency response: 25 - 18,000 Hz
- Frequency transmission via infrared interface
- Handheld transmitter with charging contacts for optional battery BA 2015 (NiMH)
- Pilot tone
- Autotune to find free frequencies
- Integrated EQ
- Audio gain over 60 dB range
- Soundcheck mode
- 4-Level battery indicator on transmitter and receiver
- HDX compander
- LCD with AF level and channel display
- 30 mW transmitter power
- 2 BNC antenna connectors
- XLR male balanced and jack unbalanced
- Power supply 10.5 - 16 V DC
